>> Features
Small units with high stable performance. Lower current leakage and dissipation factor, stable frequency, temperature and long life. Suitable for military equipments, computer, telephone and other electronic products. It meets IEC384-15-3 and GB7215-87 standard.
>> General Characteristics
◆ Operating temperature: -55 ~125℃
◆ Capacitance Tolerance:±20% ,±10%,±5%（Special Order).
◆ Capacitance Range: 0.1μF～330μF
◆ DC leakage current（20℃) I0 ≤0.02CRUR or 1μA (whichever is greater).
◆ Dissipation factor(20℃)See table 1
◆ Temperature performance: see table 1.
◆ Climatic category: 55/125/10.
◆ Life test: 1000 hours.

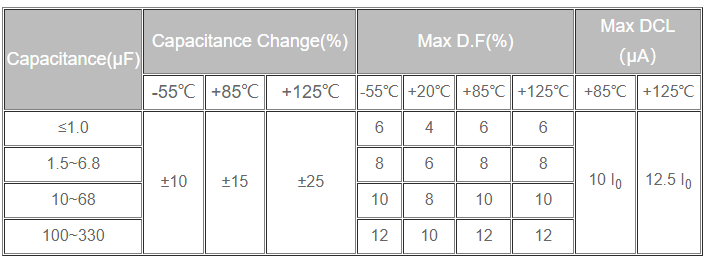

Table 1
>> Exterior And Dimension

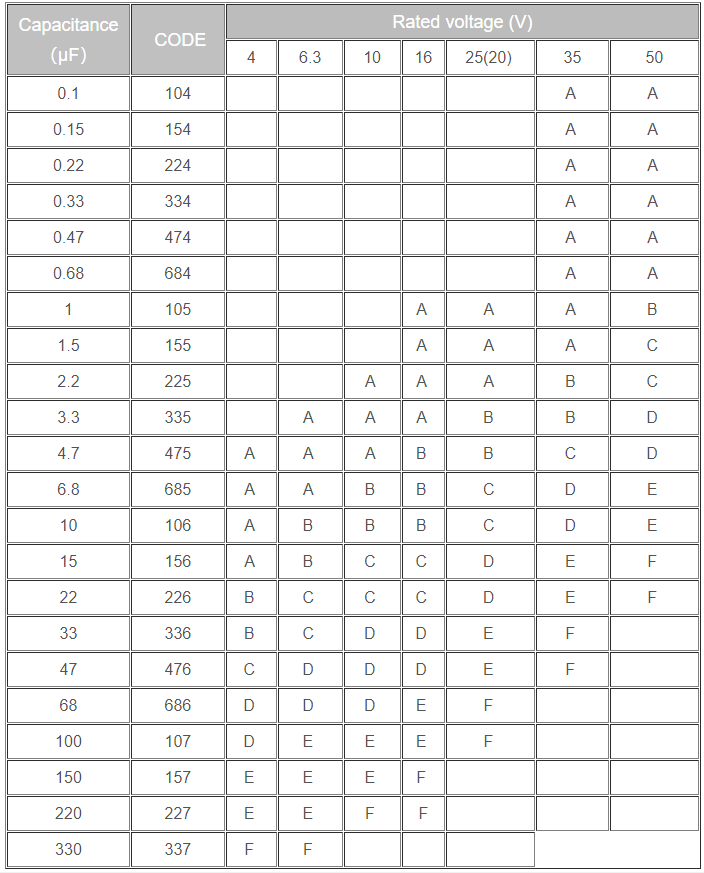

>> Capacitance Range, Case Size
>> Marking & Packaging
> Marking
◆ Packaging tape: B：Bulk T：Reel A：Ammo

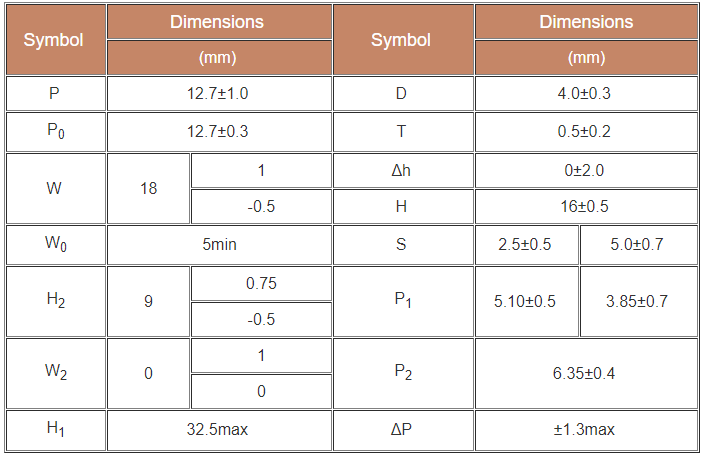

◆ Dimension of tape and reel (Per specification IEC286-2)

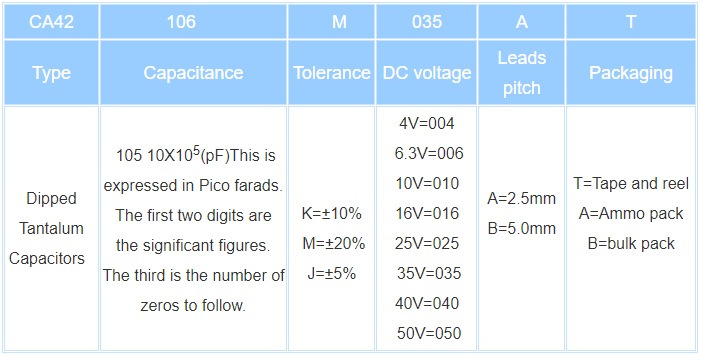

>> How To Order
