Product specification：
CA45L Specifications-170509.pdf
>>产品简介
This product is a chip-type solid tantalum electrolytic capacitor specially designed and manufactured to meet surface mount requirements. It is available in six case sizes, namely A, B, C, D, E and S. Compared with CA42 resin-encapsulated products, it features lower equivalent series resistance (ESR).
Suitable for automatic surface mount equipment, it is widely used in cutting-edge fields such as military industry, computers and mobile phones. This product complies with the technical standards of EIA 535BAAC, QC300801 and Q/YHC.45-01.
>>General Characteristics
◆ Operating temperature: -55℃ ~ +125℃ (above 85℃, use dreaded voltage).
◆ Capacitance Tolerance: ±20%，±10% .
◆ Capacitance Range: 0.1μF~1000μF.
◆ Voltage Rating：2.5V~50V．
◆ DC leakage current(20):I0 ≤0.01CRUR or 0.5μA (whichever is greater ) .
◆ Dissipation factor (20℃): see table 1.
◆ Temperature performance: see table 1.
◆ Climatic category: 55/125/21.
◆ Life test: 2000 hours.
◆ Reliability:2% per 1000h at 85℃ with 0.1Ω/V series impedance 60% confidence level.

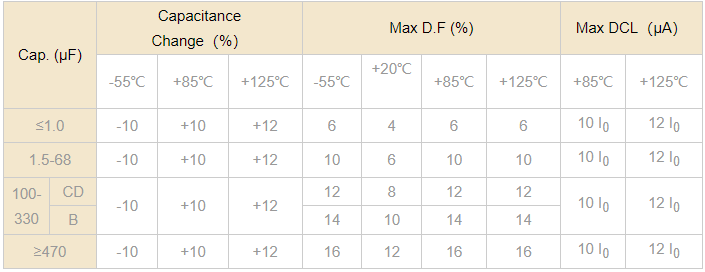

Table1
